Short Description: The Zing Ear water proof small micro switch is certificated in 0.1A 48VDC, 3A 12VDC rating which can replace for Marquardt & Alps.

Item Number G303A-180#00A23C
Rating 0.1A 125/250VAC 48VDC 3A 12VDC
Protection Level IEC IP67 except for terminal
Temperature -40~85℃ (40T85)
Electrical Life 100,000cycles(30times/min.)
Lever Type Without Lever
Terminal Type PCB Terminal
Voltage Resistance AC500V, 50/60Hz, 1min
Operation Force 180g f
Current Code SPDT
Contact Us

G303A Micro Switch Details

G303A Mini Microswitch Details

The Zing Ear G303A-180#00A23C is a mini-size water proof microswitch that certificated in 0.1A 48VDC, 3A 12VDC rating by UL, cUL, ENEC14, CQC. The production process follows RoHS, REACH standard. Meanwhile, the mechanical life is 500, 000cycles at least, which is a long-life level. So, the G303A is perfect to replace for Marquardt 1055 series & Alps SPVQ series.

G303A Mini Snap Switch Drawing and Photos

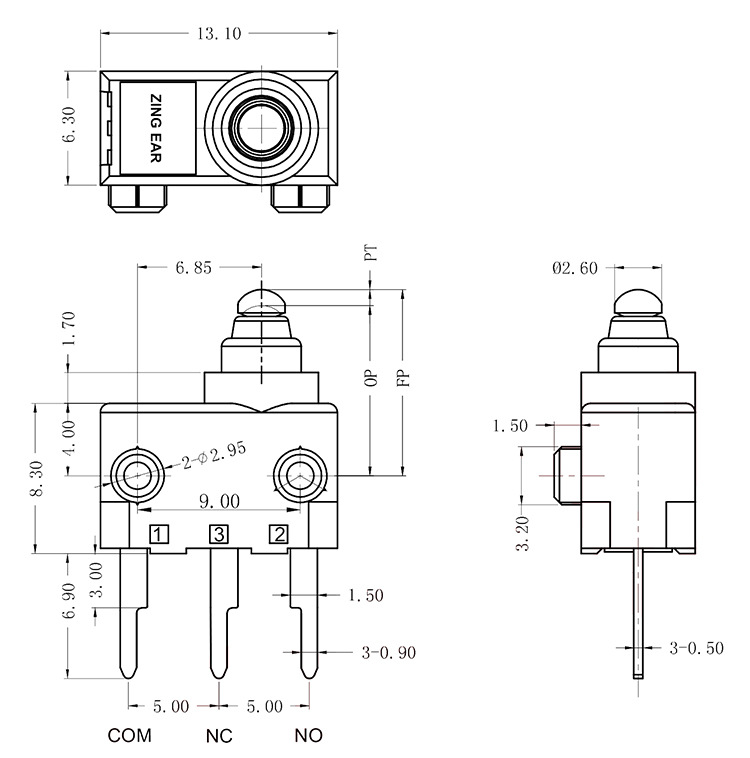

mini size switch drawing

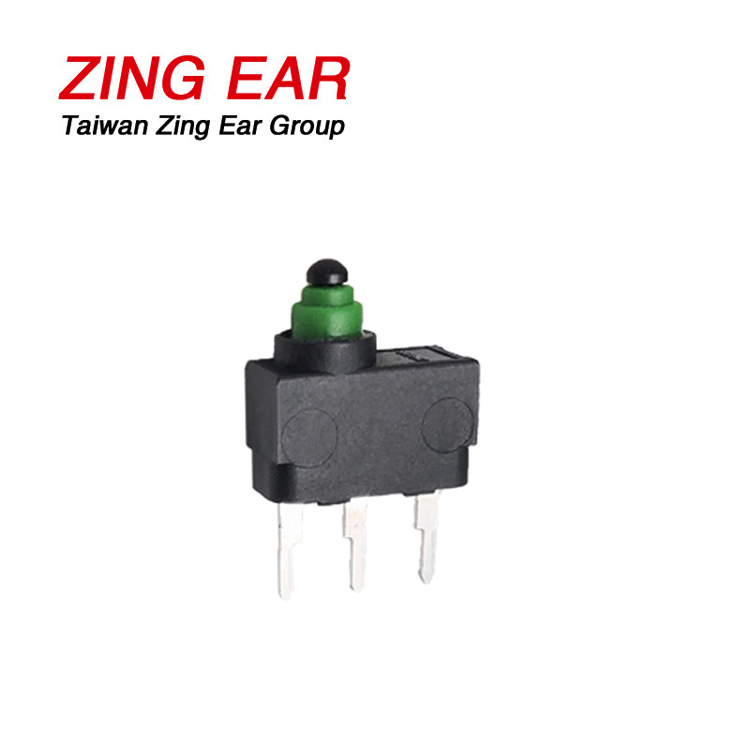

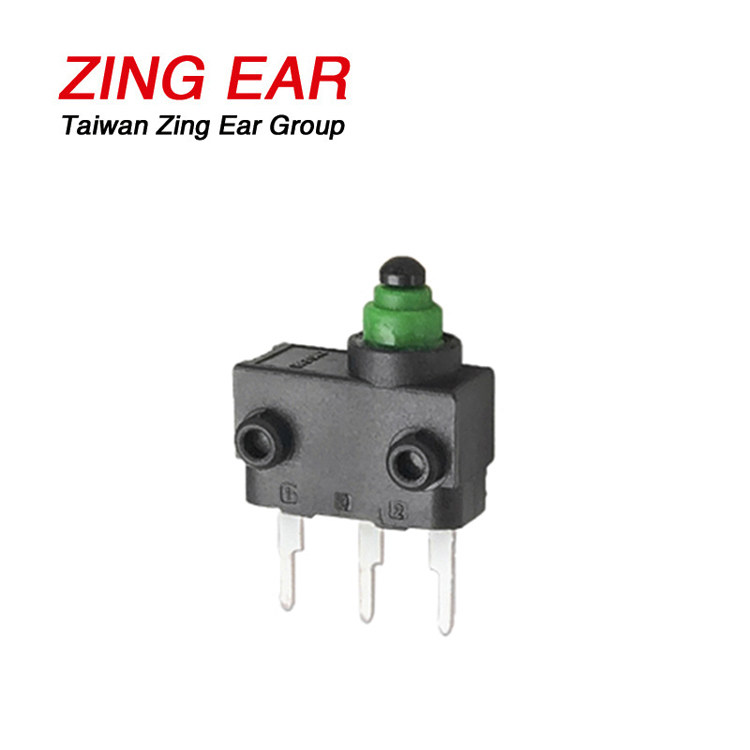

G303A-180#00A23C2 miniature switch photos

Zing Ear G303A Item Parameter Introduction

G303A-180#00A23C2 switch parameter
