Micro Switch NO NC
MPN: G605-150S07AL-23
Rating: 5A 1/8HP 125/250VAC
Contact Arrangement: SPDT
Operation Force: 50gf
Operation Position: 10.6±1.5mm
Pre Travel: 4.5mm Max
Lever Type: Simulated Roller Lever
Certification: UL, cUL, ENEC, CQC
Sample & Datasheet & Quotation: Available
Products Description

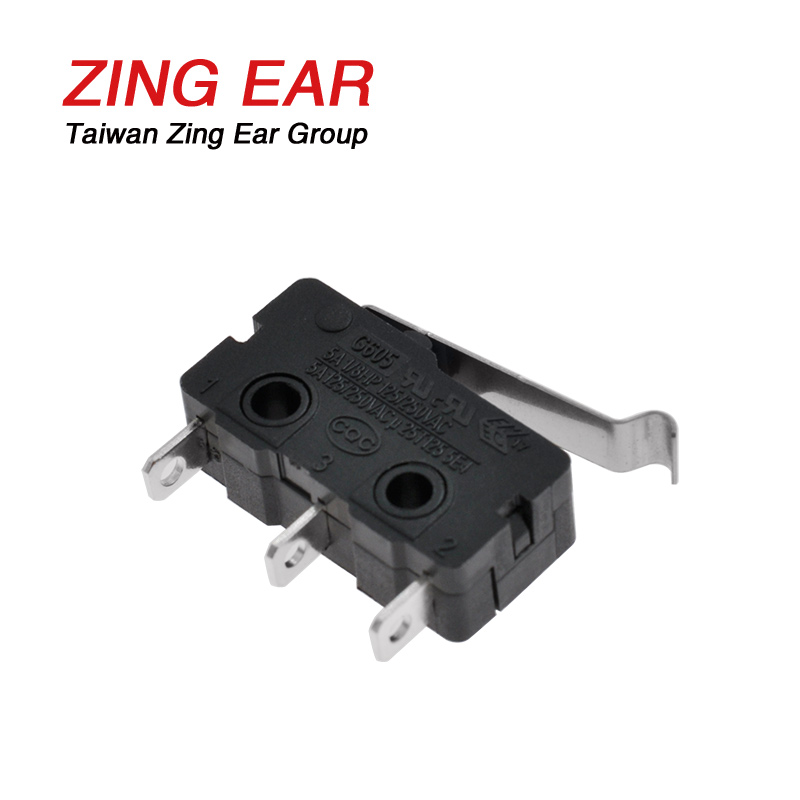

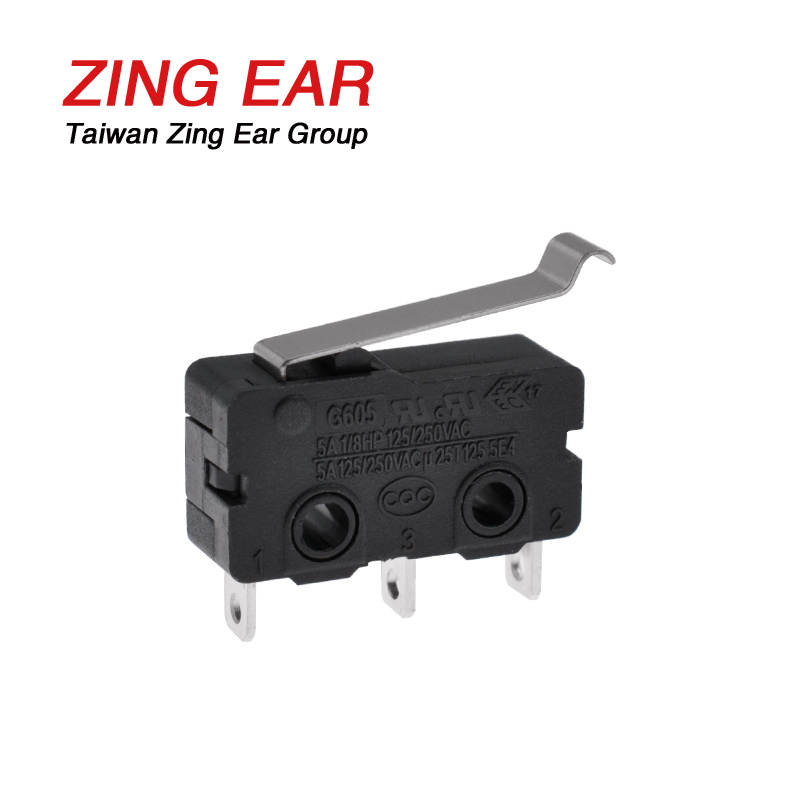

The G605-150S07AL-23 Pictures
The G605-150S07AL-23 Details Information
The G605-150S07AL-23 is a micro switch NO NC with a metal simulated roller lever, which is high quality and reliable and it also has global safety approvals to ensure that. Meanwhile, the mechanical life of the switch is 1000000 cycles and the electrical cycle is 50000 Min. So, it can meet most home appliances about life requirements because of its long-life characteristic. Meanwhile, this model’s material also has the certification of CE, ROHS, and REACH, this is why customer rewards our product quality.
The NO NC means the normally open and normally closed, and this microswitch is the SPDT type, which has 2 of these terminals and 1 COM terminal to connect with the wire.
G605-150S07AL-23 Micro Switch NO NC Drawing
