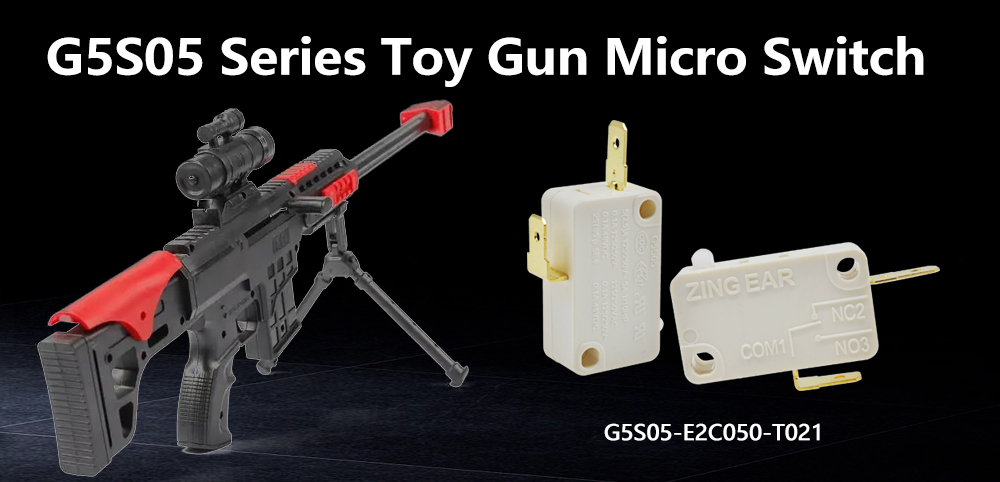

G5S05 series toy gun micro switch is a common electronic switch device, widely used in toy gun products. Its working principle is based on the mechanical structure and circuit connection method of the microswitch.
The fixing method of the micro switch: is screw fixing, two fixing methods are adopted, one is three-point fixing, and the other is two-point fixing. This method is more suitable for the situation where there are many buttons on the rolling shutter door. It can make a certain distance between the switch and the buttons to avoid wear and tear due to the close distance between the switch and the buttons.
Inside the micro switch, there is a normally open contact and a normally closed contact. When the two contacts make contact, the trigger coil is energized and the release contact closes. If neither contact is opened or closed, the microswitch is not functioning properly. When the two contacts are opened or closed, the electromagnet is compressed and releases pressure.
1. Mechanical structure
G5S05 series micro switches usually consist of a spring, a contact, and a trigger lever. The spring is responsible for providing resilience so that the contact remains in the disconnected state when there is no external force; the contact is the part that controls the current on and off; and the trigger lever is the part that changes the state of the contact through external force.
2. Circuit connection
The G5S05 series toy gun micro switch is usually connected with other electronic components (such as LED lights, sound effect modules, etc.) to form a complete circuit. In a typical design, when the toy gun trigger is depressed, the trigger lever applies pressure to the micro switch, causing the contacts to close, thereby conducting current; when the trigger is released, the spring returns the contacts to the open state. The open state cut off the current.
3. Working principle
When the trigger is not depressed (that is, the normal standby state), the spring of the microswitch keeps the contacts in the open state. At this time, other electronic components connected to it will not receive current signals and are in an off state.
When the trigger is depressed, the trigger lever applies pressure to the micro switch, causing the contacts to close. The closed contact conducts the current so that other electronic components connected to it receive the current signal and start to work. At the same time, this closed state remains until the trigger is released and the spring of the microswitch returns the contacts to the open state.
Through such a working principle, the toy gun can activate various functions when the trigger is pressed, such as emitting sound and lighting up LED lights. At the same time, these functions are stopped after the trigger is released to save energy and extend battery life.
G5S05 series toy gun micro switch is a common electronic switch device, through the mechanical structure and circuit connection method, the current is turned on when the trigger is pressed, and the current is cut off when the trigger is released. It provides the means to control various functions for toy gun products, and can effectively save energy and extend battery life.
