Working principle of car audio G303 series micro switch
The G303 series micro switch in a car audio system usually refers to a tiny switch used to control the on/off status of the audio system or perform other functions. The working principle of this switch is based on the micro-action device inside it.
The working principle of the G303 series micro switch is based on mechanical triggering, which changes the state of the switch through physical pressure or current. In car audio systems, these switches can be used to provide user interface control functions as well as trigger the audio system to perform specific actions.
-

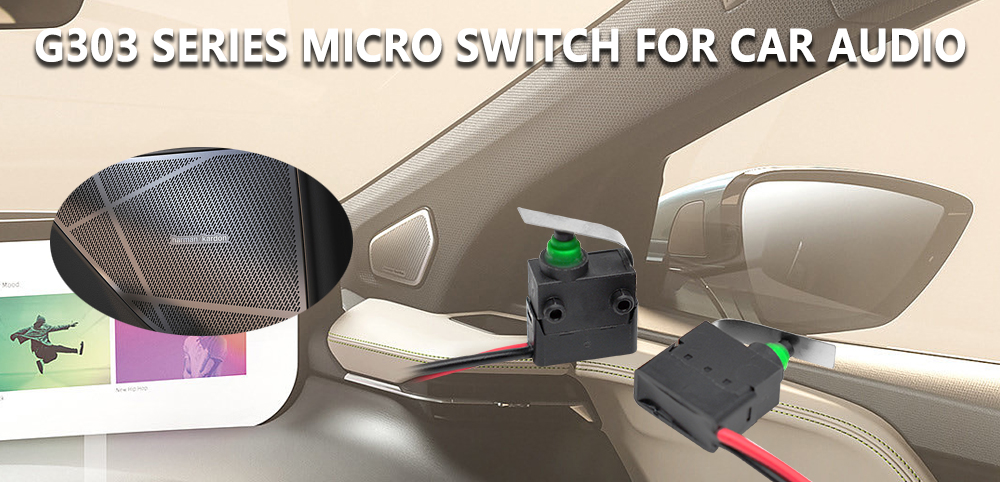

G303 series micro switch in audio device
G303 series micro switches usually contain a tiny spring and a movable contact inside. When the switch is in its normal state, the spring holds the contacts in the open state, preventing current from passing through. When external force or pressure is applied to the switch, the contacts are depressed, causing it to close, allowing current to pass.
G303 series micro switches can be used as power switches for audio systems. When the switch button is pressed, the micro switch is triggered and the circuit is closed, thus turning the sound system on or off. Micro switches can be integrated into volume control knobs or buttons. By turning or pressing the control button, the microswitch detects user input and adjusts the speaker’s volume accordingly.
The car audio system supports multiple playback modes, such as radio, CD player, AUX input, etc. The G303 series micro switch can be used to switch different playback modes. When the user presses the corresponding button, the micro switch triggers the mode switching function. In some advanced audio systems, micro switches can be used to implement play and pause functions. Pressing the switch triggers music playback or pauses the current media.
The G303 series micro switches can also be used to control playlists, allowing users to switch to the previous or next track. Microswitches are often integrated into the audio system’s control panel, providing an intuitive user interface that allows the driver to conveniently control audio functions without distracting attention. This switch design makes it easy to access basic audio controls while driving without having to distract or divert your eyes.
-
Sound triggered by mechanical pressure
This type of switch is usually activated by mechanical pressure, that is, the contacts close when the device on which the switch is located is pressured or squeezed. In a car audio system, this may be triggered by pressing a switch button, a pressure sensor when closing a door, or the force of a vehicle collision.
In audio systems, mechanical pressure triggering usually refers to the use of some mechanical devices or switches to detect external force or pressure, thereby triggering the audio system to perform corresponding functions. Many vehicles are equipped with mechanical door-related switches that detect the opening and closing of the doors. This mechanical pressure trigger may allow the system to automatically turn the audio system on or off when the door is closed.
Some advanced vehicles may detect when the driver or passenger is seated via a mechanical pressure trigger on the seat, which then activates the sound system. When someone is in the seat, the speaker can start playing music or other media. Some audio systems may integrate mechanical buttons on the audio panel. When the user presses the button, a mechanical pressure trigger is used to perform the corresponding function, such as switching audio tracks, adjusting the volume, etc.
In automotive systems, the buttons on the remote control may use mechanical pressure triggers. When the user presses the button, the remote control sends a signal to the audio system through this mechanical trigger to execute the corresponding command. Mechanical pressure triggers are designed to make audio systems more intelligent and user-friendly, automating audio functions by sensing the vehicle or user’s status. Such a design helps provide a more convenient user experience and reduces the number of manual interventions required by users. However, reliability and safety also need to be considered in the design to ensure that these mechanical triggers can operate reliably in a variety of conditions.
-
Current control of car audio
G303 series micro switches can be controlled by current, that is, the contacts are closed when the trigger is subjected to current. Such switches are typically used to detect the flow of electrical current or perform current-related functions. Car audio systems may use a current sensing switch that closes when it detects the flow of current. This can be used to trigger specific audio functions, such as automatically turning the sound system on or off.
In advanced car audio systems, current sensors can be used to monitor the current level of the audio output and then adjust the volume based on the current level. For example, when the vehicle speed increases, the sound system can automatically adjust the volume through current control to ensure that the music is still clear and audible at high speeds.
Current control can also be used to implement current protection mechanisms. If the current rises abnormally, it may be caused by circuit problems or other faults. The sound system can detect this situation through the current sensor and take corresponding protective measures, such as disconnecting the power supply or issuing a warning. Current control can also be used to optimize power management. By monitoring the current demand of the sound system, the system can adjust power distribution as needed to improve energy efficiency and extend battery life.
Overcurrent control realizes the intelligence and optimization of the audio system. Current control can be adjusted according to different conditions of the vehicle or music playback, providing a better user experience and ensuring system reliability. In the design, the accuracy of the current sensor, the system response speed and the impact on the vehicle electrical system need to be comprehensively considered.
-
Applied to audio system
In car audio systems, G303 series micro switches are usually used to control the on/off status of the audio, adjust the volume, switch audio tracks or perform other functions. For example, pressing a button on the audio panel may trigger the system to perform the corresponding operation through the G303 series micro switch.
In car audio systems, current control can be used in a variety of applications to improve system performance, efficiency, and user experience. Here are some possible applications: With current control, sound systems can optimize power management, ensuring sufficient power when higher volumes are needed and reducing power consumption at lower volumes, thereby improving energy efficiency and extending battery life.
The car audio system can implement a dynamic equalization function, which intelligently adjusts the audio output based on the characteristics of the audio source and the acoustic conditions of the interior space to provide a more balanced and high-quality audio experience. This can be achieved by integrating current sensors and intelligent control algorithms. Through current control, the audio system can more flexibly adapt to different driving conditions and user needs, providing better audio performance and user experience.
