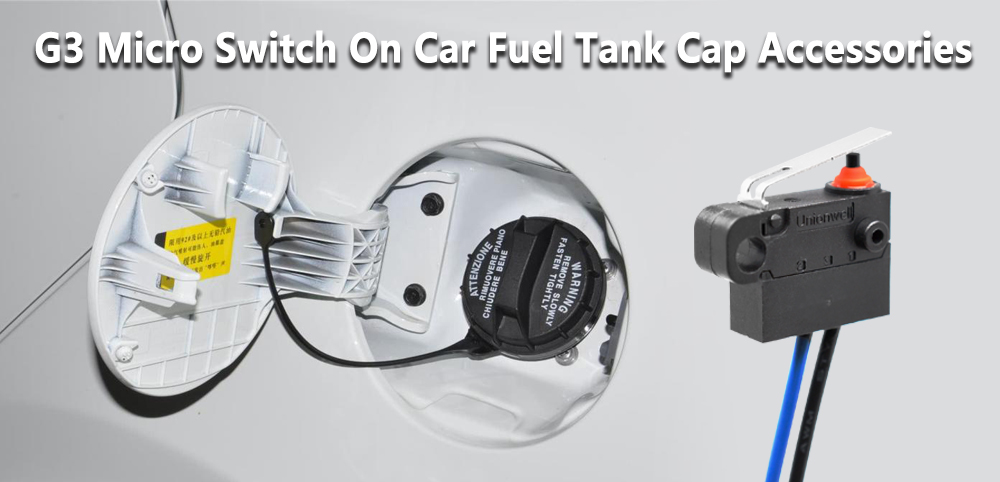

G3 Micro Switch On Car Fuel Tank Cap Accessories

Working principle of car fuel tank cap accessories with wire G3 micro switch

The wired G3 micro switch on the car fuel tank cap accessory is a switch installed on the fuel tank cap and is used to detect whether the fuel tank cap is closed. This type of switch is often associated with a vehicle’s anti-theft system and fuel system. When the fuel tank cap is closed, the microswitch triggers a signal that sends a signal to the vehicle’s electronic system that the gas cap is safely closed. If the fuel tank cap is not closed, the system may issue a warning or prevent the vehicle from starting to prevent fuel leakage or theft.

The wired G3 micro switch on the automobile fuel tank cap is a switch based on physical contact. Its main function is to detect the status of the fuel tank cap to ensure whether the fuel tank cap has been closed. This micro switch is usually a small switching device that completes a circuit through the contact or separation of metal contacts. The switch usually has a wire that connects it to the vehicle’s electrical system. In this way, when the fuel tank cap is closed, the switch closes and current flows, triggering corresponding feedback.

The microswitch indicates the status of the fuel tank cap through physical connection or disconnection, and transmits an electrical signal to the vehicle’s electronic system to trigger the corresponding vehicle control or safety function. This helps ensure the vehicle starts in the proper conditions and improves vehicle safety and theft resistance.

1. Structural design of wired G3 micro switch

The structural design of wired G3 micro switches can vary depending on the manufacturer and specific application, but generally includes some common basic elements. G3 microswitches are usually wrapped in a housing to protect their internal components. The housing is usually made of durable plastic or metal to ensure that the micro switch operates properly in a variety of environments. This is the moving part associated with the gas cap. When the fuel tank cap is closed, the trigger arm or button will be pressed or moved, triggering the state change of the G3 micro switch.

The G3 micro switch contains one or more electrical contacts inside, usually a pair of metal plates or contactors. These contacts can switch from one state to another, opening or closing a circuit, under the action of a trigger arm or button. A spring is usually used to provide the return force of the trigger arm or button, allowing it to return to its original position after the fuel tank cap is closed. This ensures that the trigger part adapts to the opening and closing action of the fuel tank cap. There are wires connected to the G3 micro switch. These wires are used to connect the G3 micro switch to the vehicle’s electronic system. Wires are usually connected to the G3 microswitch via connectors or soldering. The G3 microswitch design may include a mounting bracket for mounting the G3 microswitch on the fuel tank cap or other component of the vehicle.

2. Physical contact mechanism of fuel tank cap

G3 micro switches typically contain a contact, which is the physical connection between two electrodes. When the fuel tank cap is closed, the contacts are compressed or connected by a mechanism on the tank cap (such as an arm or a section of spring), causing the contacts to close.

The physical contact mechanism of the fuel tank cap is usually a design by which a micro switch or other sensing device is triggered when the fuel tank cap is closed, thereby generating a corresponding signal. A common design is to mount a button or arm on the fuel tank cap. When the fuel tank cap is closed, this button or arm will be pushed or depressed, triggering the corresponding sensing device.

The button or arm on the fuel tank cap may be associated with a spring. When the gas cap is closed, the button or arm compresses the spring. This design ensures that physical contact remains effective after the fuel tank cap is closed. The physical contact mechanism on the fuel tank cap may involve magnetic elements. When the fuel tank cap is closed, the magnetic element may be attracted to the sensor or magnetic switch, triggering a corresponding signal.

The physical contact mechanism on the tank cap can sometimes also be integrated with the tank cap’s mechanical locking system. When closing the fuel tank cap, the mechanical locking system may trigger physical contact to ensure that the cap is securely closed. Cars use a rail or groove design on the fuel tank cap to ensure there is physical contact when closed. These grooves or rails can be aligned with corresponding sensing devices when the fuel tank cap is closed.

3. Circuit status of fuel tank cap

When the contacts are closed, the switch completes a circuit, allowing current to pass through. This is a closed circuit condition indicating that the fuel tank cap has been properly closed. This status is communicated to the vehicle’s electronic system via wires on the switch. The circuit status of the fuel tank cap refers to the status of the circuit connected to the microswitch or other sensing device on the fuel tank cap. This circuit status reflects whether the fuel tank cap is open or closed so that the vehicle’s electronic system can take appropriate action.

When the fuel tank cap is closed, the circuit of the G3 microswitch or sensing device is usually in a closed state. A closed circuit means that electricity can flow along the circuit because the electrical contacts or switches are connected together. This is a condition that indicates the fuel tank cap is closed.

When the fuel tank cap is opened, the circuit of the G3 micro switch or sensing device is usually in an open state. Opening a circuit means that electricity cannot flow because the electrical contacts or switches are separated. This is a condition that indicates the fuel tank cap is not closed.

The vehicle’s electronic system monitors the status of this circuit to determine the status of the gas cap. If the circuit is closed, the system assumes the fuel cap is closed. Accordingly, if the circuit is open, the system will assume that the fuel tank cap is open or not closed.

4. Vehicle electronic system response

The vehicle’s electronic systems monitor this circuit status. If the electronic system detects a closed state, it will consider that the fuel tank cap has been closed, and corresponding measures will be taken, such as turning off the fuel tank cap open warning light, allowing the engine to be started, etc. When the electronic system detects that the gas cap is not closed properly, it can illuminate an open gas cap or fuel system problem warning light on the instrument panel. This is a way of notifying the driver that the gas cap is not closed properly.

Vehicles may be equipped with an alarm system that sounds when the gas cap is left open to draw the driver’s attention. In automotive vehicles, the gas cap status may be associated with the vehicle’s anti-theft system. If the fuel tank cap is left open, the anti-theft system may activate, taking additional security measures such as locking the vehicle or sounding an alarm.

To prevent fuel leaks or other potential safety issues, some vehicles may disable engine starting when it detects that the gas cap is not closed. The vehicle’s electronic control unit may receive information about the status of the fuel cap and adjust certain parameters of the vehicle accordingly to ensure safety and compliance.

5. The state when the fuel tank cap is opened

When the fuel tank cap is opened, the contacts separate, breaking the circuit. This will be detected by the electronic system, triggering corresponding alarms or safety measures to avoid fuel leaks or prevent theft. When the fuel tank cap is opened, the circuit status of the microswitch or other sensing device associated with the fuel tank cap usually changes to the open state. This means that the electrical contacts or switches are separated and electricity cannot flow through the circuit.

An open fuel cap may trigger the vehicle’s electronic systems to take safety measures to prevent potential problems, such as fuel leaks or other safety risks. The vehicle’s electronic system may illuminate an open gas cap or fuel system problem warning light on the dashboard to alert the driver to check the status of the gas cap.

The vehicle may be equipped with a system that sounds an audible alarm when the gas cap is opened to draw the driver’s attention. An open fuel cap may be considered a potential security risk, and some vehicles’ anti-theft systems may be activated to take additional security measures, such as locking the vehicle or sounding an alarm.

How can wired micro switches improve the performance of automotive fuel tank cap accessories?

The use of wired micro switches in automotive fuel cap accessories can improve performance and safety. Failure to close the fuel cap properly can result in fuel leakage, which is a serious safety risk that can cause a fire or explosion. A wired microswitch prevents this potential hazard and increases vehicle safety by ensuring the fuel tank cap is fully closed.

The main function of the wired micro switch is to detect whether the fuel tank cap is closed. By ensuring the fuel tank cap is fully closed, you can prevent fuel leaks and improve vehicle safety. This is vital for drivers, passengers and other road users as fuel leaks can lead to fires or other serious accidents.

Wired micro switches help improve vehicle reliability and user experience by improving the safety, theft resistance and overall performance of fuel cap accessories. This is also in line with the ever-increasing requirements of modern automobile manufacturing industry for safety, intelligence and environmental protection.

Wired micro switches can be integrated into the vehicle’s anti-theft system. If someone attempts to open the fuel cap and the switch detects an unauthorized condition, the system may trigger anti-theft measures such as sounding an alarm or locking the cap.

As modern cars become smarter, the status of wired microswitches can be integrated into the vehicle’s electronic monitoring system. This enables vehicle systems to monitor fuel cap status in real time and provide driver warnings or other information.

The introduction of wired micro switches has made electronic monitoring more effective on automotive fuel tank cap accessories. The wired micro switch can monitor the status of the fuel tank cap in real time through the electronic monitoring system. This means that the vehicle can immediately sense whether the fuel tank cap is closed and respond accordingly in a timely manner.

The electronic monitoring system can communicate to the driver that the fuel tank cap is not closed via a warning light on the instrument panel, a text display or an audible warning. This helps ensure drivers take prompt action to avoid potential safety risks. The vehicle is equipped with a remote monitoring and notification system. Electronic monitoring can be integrated with these systems, allowing owners to receive notifications of gas cap status via mobile apps or other means, even when the vehicle is not nearby.

The circuit with the wired microswitch is closed when the fuel tank cap is fully closed, but is open when the tank cap is open. This helps avoid unnecessary current loss and helps save energy, which is especially important for electric vehicles.

The use of wired micro switches can help save energy to a certain extent, especially in electric and hybrid vehicles. The wired micro switch closes the circuit when the fuel tank cap is closed and opens the circuit when the fuel tank cap is open. Since current only flows when the tank cap changes state, unnecessary loss of current in the system can be reduced. This helps reduce energy consumption, which is particularly important for battery-powered electric vehicles.

Modern vehicles are equipped with intelligent energy management systems that include monitoring of the status of the fuel cap. By using wired microswitches, these systems can manage energy more efficiently, dynamically adjusting the flow of electricity based on actual demand. Wired micro switches help extend battery life by reducing current drain, especially when the vehicle is parked or not in use for extended periods of time. This is particularly important for electric vehicles, which are powered primarily by batteries.

Wired micro switches help increase the efficiency of the entire vehicle electronics system by ensuring that electrical current only flows when needed. This helps minimize energy waste and makes the vehicle more efficient in its use of energy.
