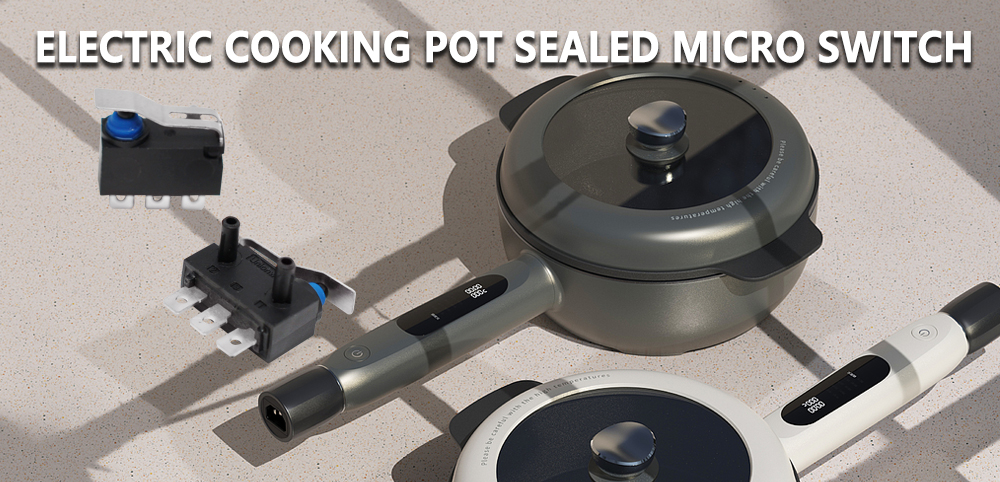

The working principle of the sealed micro switch in the electric cooking pot
The sealed microswitch in an electric cooker is usually a small switch used to control the power supply. A sealed microswitch is a small electronic switch whose working principle is based on its internal mechanical structure. Sealed micro switches contain a movable cantilever or lever that displaces when external force or pressure is applied.
There is a set of electrical contacts inside the sealed micro switch, usually including normally open contacts and normally closed contacts. These contacts are connected into the circuit. When sufficient force or pressure is applied externally, the cantilever or lever will displace, changing the state of the contact. If it is a normally open contact, it will close; if it is a normally closed contact, it will open.
The sealed micro switch triggers the state change of the internal contact through mechanical movement, thereby controlling the flow of current in the circuit and realizing the switching function. In electric skillets, this switch is typically used to control power to the heating element and turn the appliance on or off when needed.
Electric cooker switch status
The cantilever or lever is positioned so that the contacts remain in a specific state without external force acting on them. If it is a normally open contact, it is open under normal circumstances; if it is a normally closed contact, it is closed under normal circumstances.
Electric skillets are often equipped with a switch that controls the heating element so that the user can control when the appliance is on heat. This switch is typically a manual switch, sometimes it may be an electronic push button, and the exact design may vary depending on the manufacturer and model.
When the user places the switch in the “on” position, the electric skillet will begin to heat. In this state, the heating element will be activated and the water or food will be heated in the pot. When the user turns the switch to the “off” position, the electric cooker will stop heating. In this state, the heating element will be disconnected from the power supply and the temperature in the pot will gradually decrease.
Some electric cookers may have additional functions, such as keep warm function, water boiling function, etc., so the switch status may have more options. In addition, some advanced electric cookers may be equipped with electronic control panels that allow users to adjust parameters such as temperature and time through touch buttons or digital controllers instead of simple physical switches. These functions and status may vary between different electric cooker models.
Electric cooker circuit control
Changes in the state of the contacts affect the flow of current in the circuit. This state change can be used to trigger other electronic components, such as controlling the power supply of an electric cooker. The circuit control of the electric cooking pot is realized through the circuit board and related electronic components. These components include, but are not limited to, microcontrollers, relays, sensors, and other electronic components.
Many modern electric skillets use microcontrollers to handle the control logic. A microcontroller is a small computer chip that monitors and controls various aspects of an electric cooker, including temperature, time, and user input. Electric cooking pots are often equipped with a temperature sensor to monitor the temperature inside the pot. These sensors provide temperature information to the microcontroller, allowing it to adjust the operation of the heating element to maintain the set temperature.
A relay is an electromagnetic switch used to control the switching of larger currents. In electric cookers, relays are usually used to control the on and off of the heating element to achieve the function of heating and stopping heating. The physical switch or electronic button on the electric cooker enables the user to control the device by changing the input signal of the microcontroller. This can include functions such as turning the heating element on and off, adjusting the temperature and setting cooking times.
Electric skillets are equipped with a digital or LCD display that displays information such as current temperature, remaining cooking time, and more. These displays are also controlled by microcontrollers. The circuit of an electric cooker usually also includes some safety protection functions, such as over-temperature protection and overheating protection, to ensure that the equipment can stop working safely under abnormal circumstances. The circuit system of the entire electric cooker is a complex system. Through the coordinated work of these components, precise control of parameters such as temperature and time is achieved to meet the user’s cooking needs.
How can micro switches improve the performance of electric cookers?
The micro switch itself is a small mechanical switch, usually used to control home appliances such as electric cookers. Although the main function of the micro switch is to realize the switching function of the circuit, when designing and selecting the micro switch, the sensitivity of the micro switch can affect the user experience of the electric cooker. Choose micro switches with moderate sensitivity to ensure that users can achieve switch operations with a light touch and improve the ease of use of the equipment.
Electric skillet durability
Choose micro switches with high durability and long life. In equipment that requires frequent use, such as electric cookers, micro switches with longer service life can reduce equipment damage and maintenance costs caused by switch failure. The durability of an electric skillet depends on several factors, including build quality, material selection, use and maintenance.
The material quality of the electric cooker’s outer casing, heating element, internal coating and other components directly affects its durability. Using high-quality, corrosion-resistant materials will help reduce the likelihood of damage to the pot. The heating element of an electric skillet is often a key durability factor. Heating elements should be designed and materials selected to withstand prolonged, high-temperature use while avoiding overheating and damage.
Electric cooking pots have internal coatings, such as anti-stick coatings. The quality and durability of the coating will directly affect the service life. A high-quality coating reduces food adhesion and prevents corrosion. The circuit design of an electric cooker needs to be robust enough to avoid circuit failures and short circuits. This involves the quality and reliability of electronic components such as switches, sensors and controllers. The environment in which an electric cooker is used will also affect its durability. If you frequently use it in a humid environment, it would be more appropriate to choose an electric cooker with good waterproof properties.
Waterproof performance of electric cooking pot
Since electric cooking pots usually involve liquids and humid environments, it is important to choose a micro switch with good waterproof performance. This helps prevent moisture and moisture from entering the micro switch, reducing short circuits or damage caused by moisture. The water resistance of an electric skillet is an important design feature because water and moisture are involved in the process of boiling and cooking.
Electric skillets should generally have a sealed design to ensure that moisture cannot penetrate into the electrical components or circuits. This includes waterproof seals, rubber gaskets and suitable joint design to prevent moisture from entering the interior of the device. Electric cookers are equipped with an electronic control panel, which should be designed to be waterproof to prevent water droplets or steam from entering the switches, display and electronic components.
The heating element of an electric cooker is the part that is in direct contact with water, so it is necessary to ensure that its structure and materials are waterproof and not susceptible to corrosion. The bottom part of the electric cooker is in contact with the countertop and needs to be waterproof to prevent moisture from penetrating into the electrical components. Some electric skillets may have a rubber pad or anti-slip design on the bottom, as well as being waterproof.
The point where the power cord enters the electric cooker needs to be properly sealed to prevent moisture from penetrating along the power cord and into the internal circuitry. Use materials with good waterproof properties, such as waterproof plastic or waterproof coating, to improve overall waterproofing. Electric skillets are designed to take into account the possibility of water splashing during cooking. Splash-proof design reduces the chance of moisture reaching critical components.
High temperature resistance
Since electric cookers involve high-temperature cooking processes, the microswitch needs to have certain high-temperature resistance to ensure reliable operation in high-temperature environments. Taking into account the steam generated during cooking, electric cookers should be designed to prevent steam from penetrating into the electrical components.
reliability and consistency
Choose a micro switch with good reliability and consistency to ensure that the switch performance remains consistent over a long period of use without problems such as false triggering or malfunction. To ensure user safety, choose micro switches that comply with relevant safety standards. This can include fire-resistant materials and design, as well as features that meet electrical and mechanical safety requirements.
In the overall design, optimizing the selection of micro switches can help improve the performance, reliability and user experience of the electric cooker. Different brands and models of microswitches may have different characteristics, so the specific requirements of your electric cooker need to be taken into consideration when designing and selecting.
