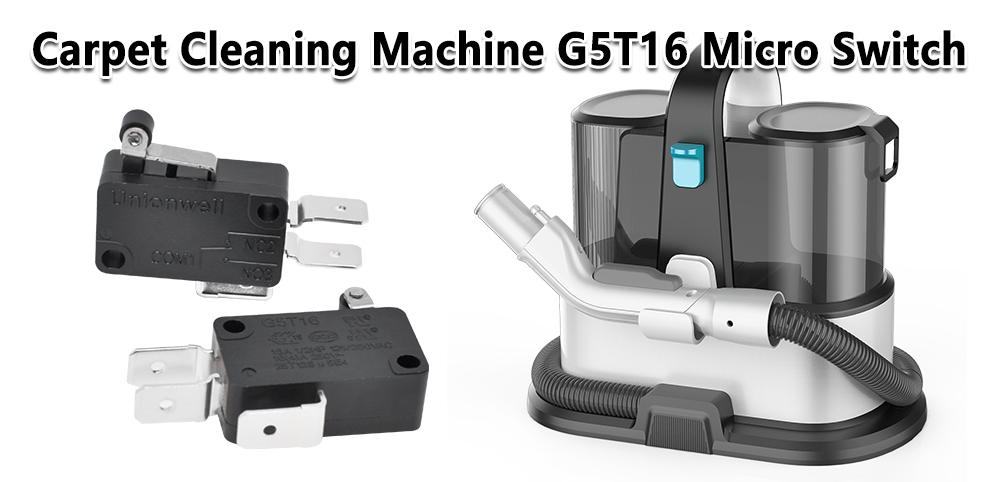

Working principle of micro switch G5T16 for carpet cleaning machine
Carpet cleaning machines are indispensable cleaning equipment in modern homes and commercial places. Their performance and reliability are directly related to the efficiency and quality of cleaning work. As a key component of the carpet cleaning machine, the G5T16 microswitch has an in-depth understanding of its working principle and is of great significance to ensure the normal operation of the machine and extend its service life.
G5T16 micro switch, also known as sensitive switch or tactile switch, is an electronic switch that can trigger its on-off function through a small force or displacement. Its basic structure mainly consists of contacts, springs, shells, buttons and other components. The contacts are responsible for switching on and off the circuit, the spring leaf plays a role in supporting and resetting, the shell protects the internal structure and provides an installation interface, and the button is the medium for users to interact with the G5T16 micro switch.
The G5T16 micro switch can trigger action under the action of small force or displacement. This feature makes it excellent in applications that require precise control. The micro switch adopts high-quality materials and manufacturing processes, has excellent mechanical and electrical properties, and can maintain stable performance during long-term use. Due to the structural design and material selection of the micro switch, it has high durability and reliability, and can meet the needs of long-term and high-frequency use.
Working principle of G5T16 micro switch
The working principle of the G5T16 micro switch is based on the opening and closing of the circuit. When subjected to external mechanical force, the button of the G5T16 micro switch will be compressed, causing the spring leaf to deform and push the contact to move. During this process, the contact state of the contacts will change, thereby realizing the switching of the circuit. Specifically, when the button is not subject to external force, the contacts are in a disconnected state and the circuit is broken; when the button is subject to sufficient external force, the contacts are closed, a circuit path is formed, and the current can pass; when the external force disappears, the spring leaf will recover In the original position, the contacts are open and the circuit is broken again.
During the working process of the G5T16 micro switch, the material and structure of the contacts have an important impact on the performance of the switch. Contacts are usually made of metal materials with good electrical conductivity and mechanical elasticity, and can withstand frequent opening and closing operations. At the same time, the structural design of the contacts also needs to consider factors such as contact area and contact pressure to ensure the stability and reliability of the switch.
In addition, the working principle of the G5T16 micro switch is also affected by external environmental factors. For example, environmental factors such as temperature, humidity, dust, etc. may affect the performance of the switch. Therefore, in practical applications, it is necessary to select a suitable G5T16 micro switch type and install it reasonably to ensure its normal operation.
Application of G5T16 micro switch in carpet cleaning machine
In carpet cleaning machines, G5T16 micro switches are usually used to control the machine’s switch status, brush plate rotation and other functions. Specifically, when the carpet cleaning machine is started, the micro switch will receive a signal from the control circuit and close the contacts, thus turning on the power to the motor and other components, allowing the machine to start working. When it is necessary to stop the machine, the control circuit will send a stop signal to the micro switch to disconnect the contacts, cut off the power supply to the motor and other components, and stop the machine from working.
In addition, the G5T16 micro switch can also be used to control the rotation of the brush plate. When the brush plate needs to rotate, the micro switch will receive the corresponding signal and close the contacts, thus turning on the power of the brush plate motor and causing the brush plate to start rotating. When the brush disk needs to stop rotating, the micro switch will also receive a stop signal, causing the contact to open, cutting off the power supply to the brush disk motor, and causing the brush disk to stop rotating.
The application of micro switches in carpet cleaning machines not only improves the automation of the machine, but also makes operation more convenient and safer. By accurately controlling the triggering conditions and action sequence of the micro switch, intelligent control of the carpet cleaning machine can be achieved, improving cleaning efficiency and quality.
Maintenance and maintenance of G5T16 micro switch
In order to ensure the normal operation and extend the service life of the G5T16 micro switch in the carpet cleaning machine, it needs to be maintained and maintained regularly. Specific measures include:
Regularly check the appearance and structure of the micro switch to ensure that it is not damaged, deformed, or rusted.
Clean the G5T16 micro switch regularly to remove dust, oil and other impurities to maintain a good working environment.
Check whether the contacts of the G5T16 micro switch are worn or oxidized. If necessary, replace the contacts or the entire switch in time.
Check whether the connection line of the G5T16 micro switch is loose or aging, and ensure that the circuit connection is reliable.
With the continuous development of technology, micro switches may use more advanced manufacturing processes and materials in the future to achieve higher precision and reliability. At the same time, with the popularization of smart home and Internet of Things technology, carpet cleaning machines may achieve more intelligent control and management, and micro switches, as a key component, will also usher in broader development prospects.
Micro switches play a vital role in carpet cleaning machines. Understanding its working principle and performing reasonable maintenance and upkeep are of great significance to ensuring the normal operation of the carpet cleaning machine and improving cleaning efficiency. At the same time, with the continuous advancement of technology and the continuous expansion of application scenarios, the performance and applications of micro switches will also be further improved and expanded.
